Standalone NVR(IPcorder) for IP Cameras

KNR-090  IPCorder 4 channel Compact NVR.

The KNR-090 IPCorder is unique standalone Network Video Recorder (NVR) solution for systems with IP cameras, including the latest multi megapixel resolution cameras which support 4 cameras/video servers.

The general supported brands are:- ACTi, Arecont Vision*, AXIS, D-Link, Dallmeier*, Hikvision*, IQinVision, Linksys*, Lumenera*, Panasonic, Sony, StarDot*, VIVOTEK, Y-Cam.

Connection Diagram of IPcorder with IP Cameras

Features:-

·        Standalone Linux based NVR

·        Manage/Record/View up to 4 IP cameras/video servers simultaneously

·        Screwless hard drive installation

·        Web based access using Java - supports Microsoft Windows (Internet Explorer, Mozilla Firefox etc.), Linux and Apple Mac OS

·        Open solution - support of various IP cameras from different manufacturers

·        Easy setup of the unit and connected devices (many tasks done automatically)

·        Easy recordings search, playback and export

·        Easy remote access from the Internet - Fully automatic or Manual router setup

·        Trully Megapixel Ready - up to 5 megapixel cameras supported

·        Rule scripting language for programming custom scripts

·        Support of I/O devices, values also available for scripting

·        1× 3.5" SATA I or II hard drive (not included)

·        High stability, no viruses, no spyware

·        Compact size and quiet operation

·        Low power consumption - green and cost effective solution



This unique standalone IP corder 4 channel can be used in small offices, houses, shops, showrooms  where up to 4 cameras need to be recorded.

Advantages of IPCorder(NVR) over a Personal Computer.

·         IPCorder uses 10 watts of power compared to a normal PC that takes 240 watts

.

·         IPCorder is a Linux based NVR so no chance of it getting virus infected compared to a PC.

·         In case of Power failure, the IPCorder is having high stability wherein the Hard Disk Drive cannot crash unlike a normal PC where there is a high chance of the Hard Disk Drive crashing.

·

IP   IPCorder are very portable compared to a normal PC.

·

IP   IPcorder comes with its own inbuilt software for both LIVE viewing as well as Recording which enables a viewer to view locally through a PC, over the network or internet through web browsers like FIREFOX, INTERNET EXPLORER,SAFARI,CHROME without downloading any additional software, all the channels can be LIVE viewed at the same time. While in a normal PC one needs to install separate software for both LIVE viewing as well as Recording. Over the internet, the live viewing can be done through FIREFOX, INTERNET EXPLORER, SAFARI,CHROME on channel at a time.

The KNR-090 IPCorder 4 channel NVR’s Interface

CD-ROM size device

Network /USB/Power  Port

Easily add/remove HDD

Browser Interface

Easy display of motion detected in video in red.

Play video selecting any date/time/camera.

Easily backup video through a single click on your computer

View all cameras from any brand together in a single interface.

Control PTZ any camera from the left panel.

Control devices and also easy digital zoom in while

 possible in live and recorded video

-

Auto configure and manage cameras into the system

IPCorder can automatically detect cameras setup within the network.

If you would like to purchase the IPCorder or have any further questions about it.Please feel free to contact us

at sales@livedarshan.com  or  91-22-66359179

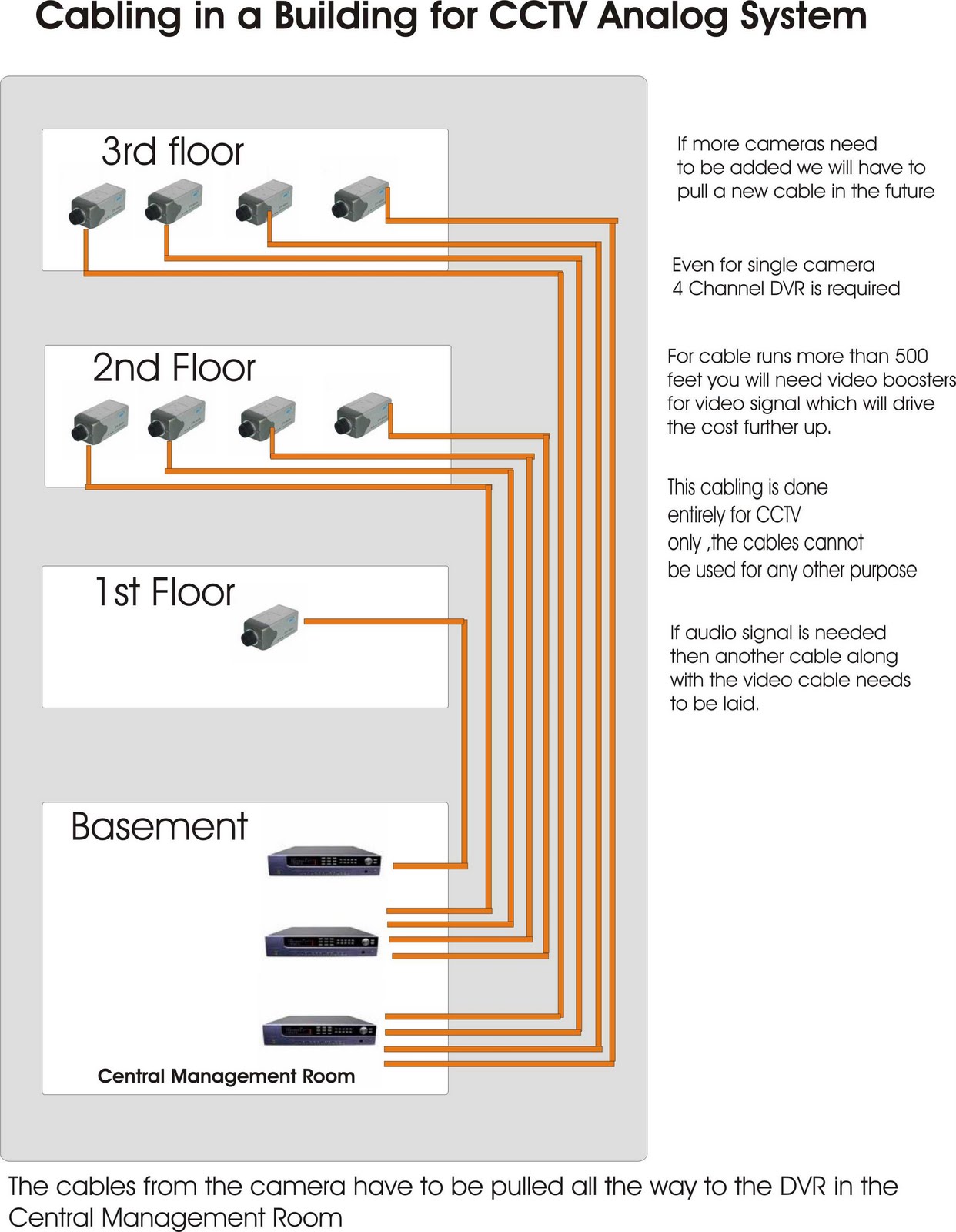

Cabling for IP Camera vs. Analog Camera Solutions

You can see the large density of cables in an Analog Camera setup.Also due to the long distance between the DVR and the cameras boosters will be required and quality of video will be degraded

Only a single fibre or Cat - 6 cable needs to run from the top of the building to the bottom and no cabling mess required.Also the solution is flexible and easily scalable. Other services can also be operated through the same fibre cable.

Thief Caught on Camera,Mumbai,India

A bakery in the Western Suburbs of Mumbai,India was installed with 20 IP cameras FDLIV7131 . All the cameras were connected using POE switches and setup for 24 hour recording.
Due the high quality of the video is was very easy to record the face of the thieves in the video who were later caught by the police.They stole a mobile phone from an unsuspecting victim. Please have a look at the video.
Now with Megapixel IP Cameras you can zoom into the recorded video and get much better detail and see faces of people standing in a distance.
We now have a new range of 2 Megapixel cameras coming up and will be able to offer 5 megapixel cameras to you by June.

For such solutions for your premises do feel free to contact us.
